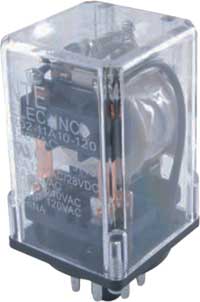

R02 Series
General Purpose 10 Amp Multicontact AC and DC Relays
 |
Features
Hermetically sealed, metal enclosure types (H-suffix)Push-to-test button types (B-suffix)
Indicator lamp types (N-suffix)
Mechanical indicator types (M-suffix)
8 pin and 11 pin Octal plug-in types
SPDT, DPDT, and 3PDT typesClear plastic dust cover
RED indicates new device

|
Electrical Characteristics
Contact
Contact Rating:
| Poles |
120VAC |
240VAC |
28VDC |
| SPDT |
10A (1/10 HP) |
10A (1/6 HP) |
10A |
| DPDT |
10A (1/3 HP) |
8A (1/2 HP) |
10A |
| 3PDT |
10A (1/3 HP) |
6A (1/2 HP) |
10A |
Contact Material: 3/16" Silver cadmium oxide
Contact Resistance: 0.050 ohms max initial
Coil
Coil Voltages: See Chart
Pick-up Voltages:
80% of nominal or less, DC
80% of nominal or less, AC
Resistance: See chart
Min Sensitivity: (125mW per pole)
Duty Cycle: Continuous
Operational Characteristics
Timing Values (At nominal coil voltage):
Operate Time: 25mS or less
Release Time: 20mS or less
Insulation Characteristics
Dielectric Strength:
Contact to Coil: 1500 VRMS
Across Open Contacts: 1000 VRMS
Pole to Pole: 1500 VRMS
Contacts to Frame: 1500 VRMS
Insulation Material: Molded polyester
Insulation Resistance: 1 x 103 megohms min
Environmental Characteristics
Operating:
-10°C to +50°C (AC)
-10°C to +60°C (DC)
Non-operating (storage): -30°C to +105°C
Weight
Std: 3.5 ozs. (99.2 grams) - typical
Hermetic sealed: 5 ozs. (141.7 grams) - typical
Back to Top

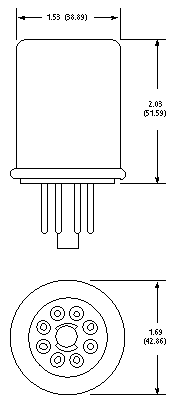

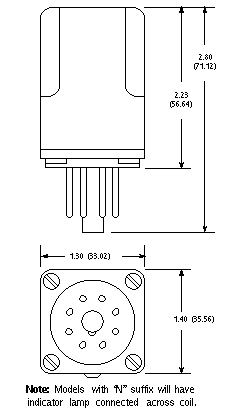

Dimensional Drawings
D1 D2
Back to Top
Contact Arrangment
(Viewed from Pin end of Plug)
A (DPDT),
2 Form "C"
 |
B (3PDT),
3 Form "C"
 | C (SPDT),
1 Form "C"
|
Back to Top
Part Numbers
| ACCESSORIES |
| Mounting Styles |
Description |
NTE Type No. |
| Surface Mount |
8-Pin Octal
11-Pin Octal |
R95-101
R95-104 |
| DIN Rail Mount |
8-Pin Octal
11-Pin Octal |
R95-113
R95-114 |
| Panel Mount |
8-Pin Octal
11-Pin Octal |
R95-118
R95-119 |
Back to Top
|
**Specifications subject to changes**
